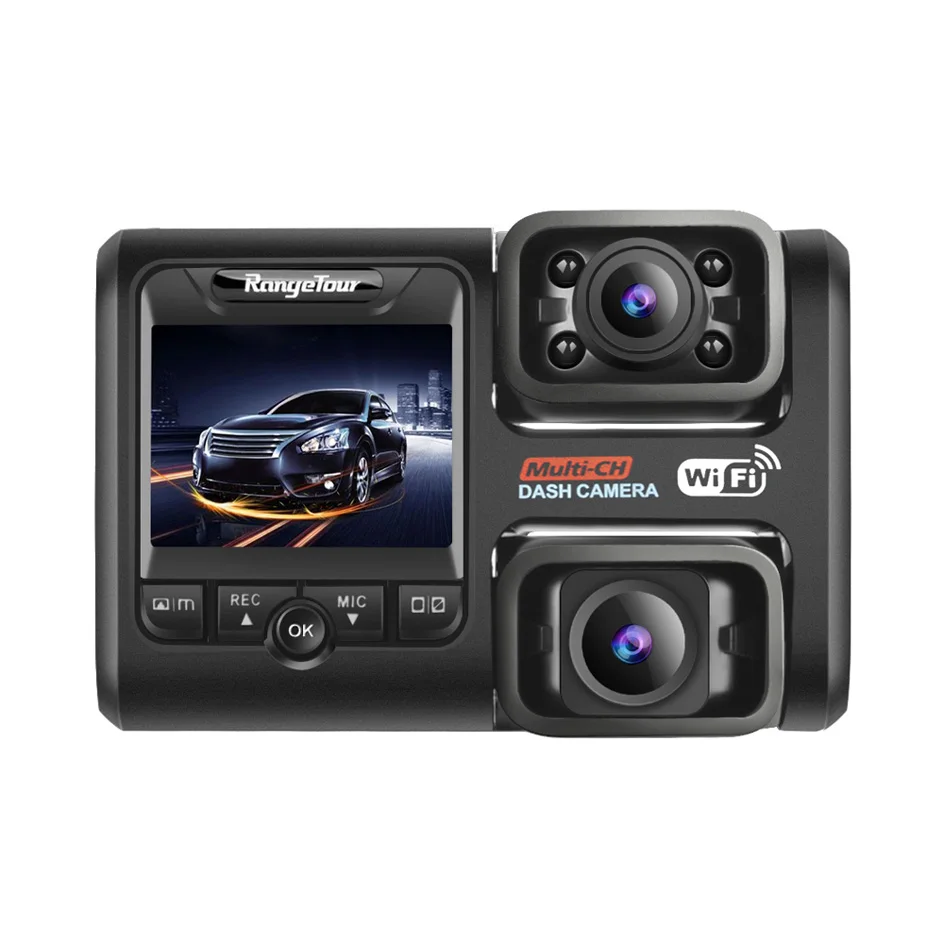

4K 2160P WIFI GPS Logger Dual Lens Car DVR Novatek 96663 Chip Sony IMX323 Sensor Night Vision Dual Camera Dash Cam Recorder D30H

Novatek 96663 Processor

Based on a powerful Novatek 96663 CPU, the dual-lens simultaneously capture
front and inside at 1080P 30P+1080P 30P/720P 30P+720P 30P.
Or utilize the front camera only to record front at 4K 2160P 24P/1440P 30P/1080P 60P/1080P 30P/720P 60P/720P 30P.

Dual SONY IMX323 Sensor

Both camera equipped with Sony IMX323 image sensor, f/1.8 aperture, and 6-glass lens, greatly enhances the video quality and captures sharp footage in low-light conditions.

Dual Rotatable Lens

Signature low-profile design allows the dashcam to be a well-hidden witness to the road ahead. Both cameras can be rotated 180 degrees forward and backward, 50 degrees left and right.

Built-in WiFi

Download the “TimaCam” app and connect the D30H Dash Cam via WiFi to viewing real-time footage or videos, downloading videos to your phone easily, and sharing your trip with friends. Also can get instant control of your dashcam setting Video Resolution/Photo Resolution/G-Sensor/Loop Recording/WDR/Motion Detection and so on.

GPS Function

GPS module(Optional) accurately logs your vehicle’s location, speed, latitude, longitude, and route. And can be view on Google Map by the “Roadcam” APP, or GPS player on the computer (WINDOWS systems).

Dual 170 Degree Wide Angle Lens

A dual 170-degree wide-angle lens offers a larger image, captures a bigger scene for avoiding missing spots.

Super Night Vision

Super Night Vision, Sony IMX323 image sensor 1/2.9 inch light-sensitive components, 4 IR lights, f/1.8 aperture, and 6-glass lens, can capture clear videos and photos even in low-light night conditions.

WDR Function

WDR technology will automatically compensate for light/dark spots and balance exposure, makes all scene details are recorded vividly.

24 Hour Parking Monitoring

Triggered by the Parking Monitor and Motion Detection, the dual dash cams will automatically turn themselves on and record when it detects motion in front of your car and someone crashes your car while parked. Recorded video won’t be overwritten. This provides insurance evidence for financial loss and vehicle scratches.
(for Parking, need to purchase Hardwire Kit separately)

ADAS(FCWS/LDWS)

LDWS: Lane Departure Warning System
FCWS: Forward Collision Warning System

Seamless Loop Recording & G-Sensor

The footage is stored in loops of 1/3 minute segments according to your setting. Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card. G-Sensor will lock footage in the event of an accident, the locked fragments will not be overwritten.

Super Capacitor (No Battery)

Built-in Super Capacitor. Prevent explosion, the camera can operate smoothly in high temperatures. Please always connect the dashcam to the car charger while it is in use.

Specifications:

Processor: Novatek 96663
Image Sensor: Dual Sony IMX323
Video Resolution: Single Channel: 4K 2160P 24P/1440P 30P/1080P 60P/1080P 30P/720P 60P/720P 30P; Dual Channel:1080P 30P+1080P 30P / 720P 30P+720P 30P
Photo Resolution: 12M/10M/8M/5M/3M/VGA
Aperture Range: inside F1.8 / outside F2.0
Decode Format: H.264
Lens Angle: Dual 170 Degree + 170 Degree
Screen: 2.0 inch TFT LCD
Video format: MP4
Photo format: JPG
WiFi: Yes
GPS: Yes(Optional)
Super Night Vision: Yes
WDR: Yes
ADAS: Yes
G-Sensor: Yes
Loop Recording: OFF/1min/3min
Auto Power ON: Yes
Auto Power OFF: 1min/2min/3min/5min/10min
Motion Detection: Yes
Exposure: -2.0,-5/3,-4/3,-1.0,-2/3,-1/3,+0.0,+1/3,+2/3,+1.0,+4/3,+5/3,+2.0
Picture in Picture: Yes
MIC: Yes
Battery Capacity: Built-in Super Capacitor (No Battery)
Power Interface: 5V 1.5A-2.0A
GPS Interface: Mini USB
Language: English/Russian/French/Spanish/Portuguese/Germany/Italian/Chinese/Japanese/Korean
Max External Card Supported: TF 256G(not included)
Product size (L*W*H): 10.6*7.3*3.9cm/4.1*2.8*1.5in

Package Included:

1 x Car DVR Recorder
1 x Car Charger
1 x 3M Adhesive Sticker
1 x User Manual

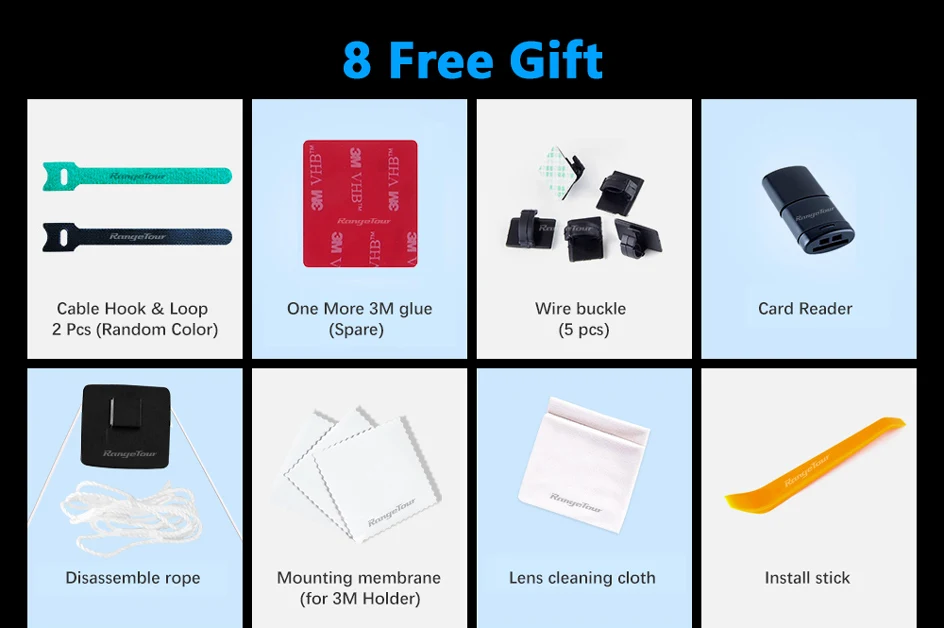

8 x Free Gift
1 x GPS Module (Optional)

Warm tip:

– Micro SD card required: Requires class10 card or above. We recommend using our micro SD card which is custom-made for Car DVR. Please format the micro SD card on your dashcam before you can use it. You can find the format option on the menu.
– No built-in battery, replaced by the supercapacitor. Please always connect the dash cam to the external power cord while it is in use. This dashcam has the “Auto Power Off” feature. When there is no external power connection, the dashcam will shut down, and time and date settings will be saved.
– Strongly suggest using the original car charger.
– Super night vision capabilities to capture a clear image in low-light conditions(except no light condition).
The inside camera uses a special lens that can sense the infrared light, the lens will sense the infrared light from the sunlight during the daytime, so the video will be partially pink. This inside camera performs optimally even in no light situations, but the video will be black and white.
